About Starlink by SpaceX
Starlink delivers high-speed, low-latency internet to users all over the world. As the world's largest and most advanced satellite constellation using a low Earth orbit, Starlink delivers broadband internet capable of supporting streaming, online gaming, video calls and more. Starlink is engineered and operated by SpaceX. As the world's leading provider of launch services, SpaceX is leveraging its deep experience with both spacecraft and on-orbit operations to deploy the world's most advanced broadband internet system.
S T A R L I N K K i t s
Rated download speeds of 40 - 220+ Mbps
18 - 25+ Mbps Rated Upload speeds
25 - 60 ms
Mini Kit

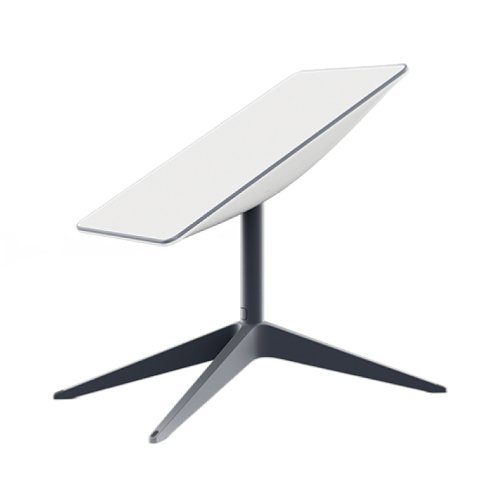

Standard Kit
Standard Actuated Kit
High Performance Kit

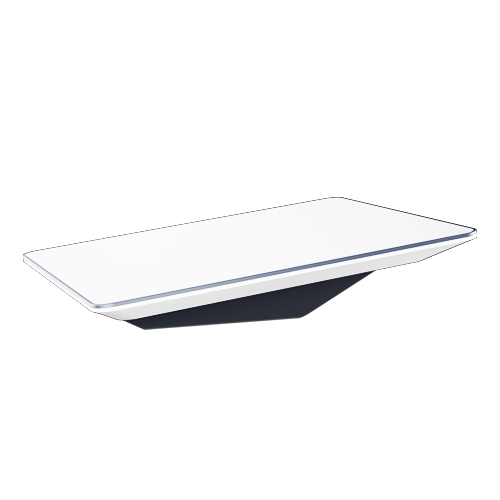

Flat High Performance Kit

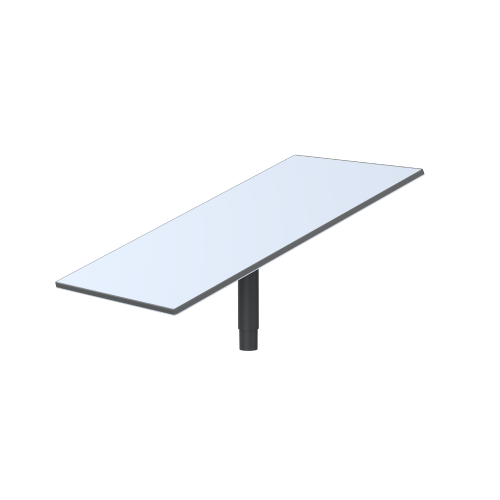

Enterprise Kit
| KIT | STANDARD ACTUATED | HIGH PERFORMANCE | FLAT HIGH PERFORMANCE | ENTERPRISE | MINI | STANDARD |
|---|---|---|---|---|---|---|
| Antenna | Electronic Phased Array | Electronic Phased Array | Electronic Phased Array | Electronic Phased Array | Electronic Phased Array | Electronic Phased Array |
| Antenna Size | 20.2 in x 11.9 in | 22.6 in x 20.1 in (575 mm x 511 mm) |
22.6 in x 20.1 in (575 mm x 511 mm) |
23.4 in x 15.0 in (594 mm x 383 mm) |
11.75 in x 10.2 in (298.5 mm x 259 mm) |
23.4 in x 15.0 in (594 mm x 383 mm) |
| Orientation | Motorized Self Orienting | Motorized Self Orienting | Fixed | Fixed | Fixed | Fixed |
| Environmental Rating | IP54 | IP56 | IP56 | IP67 Type 4 | IP67 Type 4 | IP67 Type 4 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) |
| Field of View | 110 ° | 140 ° | 140 ° | 110 ° | 110 ° | 110 ° |
| Average Power Usage | 50 - 75W | 110 - 150W | 110 - 150W | 75 - 100W | 25 - 40W | 75 - 100W |
| Wind Speed Operational | 80 kph+ (50 mph+) | 80 kph+ (50 mph+) | 280 kph+ (174 mph+) | 96 kph+ (60 mph+) | 96 kph+ (60 mph+) | 96 kph+ (60 mph+) |
| Dish Weight | 2.9 kg (6.4 lbs) without Cable 3.6 kg (7.9 lbs) with 15.2 m (50 ft) Cable |
6.9 kg (15 lbs) without Cable 9.4 kg (21 lbs) with 25 m (82 ft) Cable |
5.9 kg / 13 lbs without Cable 8.1 kg / 17.9 lbs with 25 m / 82 ft Cable |
Package Weight : 12.2 kg (27 lbs) | 1.16 kg (2.56) lbs with kickstand 1.53 kg (3.37 lbs) with kickstand and 15m Cable |
2.9 kg (6.4) lbs 3.2 kg (7 lbs) with kickstand |
| Router | |
|---|---|
| Feature | Description |
| Wi-Fi Technology | 802.11ac Dual Band |
| Generation | Wi-Fi 5 |
| Radio | Dual Band -3 x 3 MIMO |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Weight | 1 kg (2.2 lbs) |
| Security | WPA2 |
| Range | Up to 185 m² (2000 ft²) *Varies on placement, interference, and building materials |
| Environmental Rating | IP54 - Configured for Indoor Use |
| Power Indicator | White LED | Base of Router |
| Mesh Compatibility | Compatible with up to 12 Starlink Nodes |
| Devices | Connect up to 128 devices |
S T A R L I N K P l a n s
Flat High Performance:
Peak: 350↓ 40↑ Mbps
Expected: 40 – 220↓ 8 – 25↑ Mbps
Standard V3:
Peak: 150↓ 15↑ Mbps
Expected: 25 – 100↓ 5 – 10↑ Mbps
To inquire about our products or make a purchase, please contact our dedicated sales team at sales@philsat.com, visit our office located at U143 14th floor, The Columbia Tower, Ortigas Avenue, Madaluyong City, Philippines or you may fill up the form below. We are here to assist you with any questions you may have.
